CHCT100

Temperature & Time PID Controller

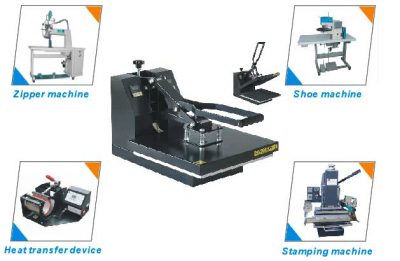

Temperature controller and trigger timer independent 2 in 1. Widely used in general heat press machine, zipper machine, shoe machine, heat transfer device, stamping machine, printing machine, molding machine.

ORDER NOW

Overview

CHCT100 is LED Digital Display PID Temperature Controller & Trigger Timer:

  • PID controlling / Autotune
  • Build-in trigger timer
  • Display switch
  • Voltage pulse output for SSR
  • Relay contact or Buzzer output timer

Main Features

  • Basic error: ≤ ±0.5 F.S, ± 1digit
  • Cold junction compensation error: ≤ ±0.25 F.S, ±1digit
  • Sampling cycle: 0.5second
  • Control cycle: 1~100 seconds adjustable for main output
  • Relay contact output: AC250/3A(resistive load) or AC250/0.3A(inductive loading)
  • Solid state relay output: DC0~12V, maximum output current 30mA
  • Work voltage: AC 220V ± 10%, 50/60Hz
  • Work condition: temperature 0~50℃  humidity <85% no causative or magnetic field interference

User-friendly creative product, temp & time 2 in 1!

CHCT100 PID Temperature controller and trigger timer combo
6 alarm modes available; S/M/H time bases available; 2 time trigger modes available…

Specification

Power Supply:

85~265V AC    50/60HZ

or 24V AC / 24V DC

Thermocouple (K, E, J)

RTD (Pt100)

N- None

R- Relay

S- SSR drive/voltage pulse

B- Buzzer

Body: 48x96x80 mm

Cutout size: 45×45 mm

Mounting Method: Flush-mounting and screw terminals

Temperature Unit: Degree Celsius (-30℃~800℃)

Display Accuracy: ±0.5%F.S                        0.1℃(<800℃)

Temperature Compensation: 0-50℃

Time range: 0~999

Time output maintain: 0~999

Time unit: S, M, H available

Time trigger mode available

Time output mode available

Time reset mode available

Storage Temperature: -20~60℃             (no icy or condensation)

Data Storage: 10 years

Mounting Method: Flush-mounting and screw terminals

Environmental Conditions: -20~60℃         (no icy or condensation)

Humidity: 35-85% RH

Net Weight: about 120g

Gross Weight: 200g​

Warranty: 12 months

For support, please visit support center or email us at sale@aposunmeter.com

1 x CHCT100 temperature controller

1 x Mounting bracket

1 x Manual

1 x 25A SSR; (optional)

1 x K Sensor; (optional)

1 x 25A SSR; (optional)

1 x PT100; (optional)
