LED-Digital-Display-Temperature-&-Humidity-Controller

CHCRH400

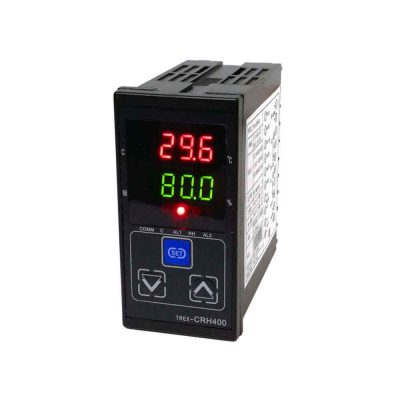

LED Digital Display Temperature & Humidity Controller

Digital Air Humidity Control Temperature Controller  Range 10%~90%RH temperature and humidity controller. Widely used for warehouse storage, egg incubator…

ORDER NOW

Overview

CHCRH series is LED Digital Display Temperature & Humidity Controller Thermohygrometer  including two sizes:

  • CHCRH400 (48mm*96mm)(width*height)
  • CHCRH700(72mm*72mm)(width*height)

Main Features

  • Temperature/Humidity display resolution options: 0.1 or 1
  • Multi input options: K, PT100, NTC, 0-3V,  AM2305, SHT10, AM2322B
    Temp sensor:  K type: ±1℃    PT100: ±0.5℃    NTC: ±1℃
    Humidity sensor:   0-3V, ±5%RH (10~90%RH)
    Bundled temp &  humidity sensor:
    AM2305: ±2%RH (10-90%RH) / ±0.3℃
    SHT10: ±4.5%RH (10-90%RH) / ±0.5℃
    AM2322B: ±2%RH (10-90%RH) / ±0.3℃
  • Relay/SSR Drive output
  • 4 control modes, ON/OFF switch control
  • Power supply: 85~265V AC or 24V AC/DC
  • Alarm standy function
  • Soft-start function for analog output
  • Environment: 0-50℃/ <85%RH (non-corrosive nodew)

Multi-function device, Easy to work!

CHCRH400 Temperature & Humidity controller

Industrial design, 4 working modes, Smart solution.

CHCRH400-LED-Digital-Display-Temperature-&-Humidity-Controller-packing-details

Specification

Power Supply Voltage:

85~265V AC    50/60Hz

24V AC / 24V DC

Aux Power Voltage:

N- no aux power

Input signal: K, PT100, NTC, 0-3V,  AM2305, SHT10, AM2322B

Temp sensor: K type:±1℃    PT100: ±0.5℃    NTC: ±1℃
Humidity sensor: 0-3V, ±5%RH (10-90%RH)

Bundled temp &  humidity sensor:
AM2305: ±2%RH (10-90%RH) / ±0.3℃
SHT10: ±4.5%RH (10-90%RH) / ±0.5℃
AM2322B: ±2%RH (10-90%RH) / ±0.3℃

N- None

R- Relay

V- SSR drive/voltage pulse

E- 0~10V DC

D- 4~20mA

F- others

Body: 48x80x96 mm

Front Panel: 48 mm(W)X96 mm(H)

Cutout size: 45×92 mm

Mounting Method: Flush-mounting and screw terminals

Temperature Units: Degree Celsius          (-20 ~ 100℃)

Display Accuracy: ±0.3%F.S                                                 0.5℃ (<100℃)

Temperature Compensation: 0~50℃

Humidity Measuring Range: 10% ~ 90%RH
Humidity Control Range: 10% ~ 89.9%RH
Humidity Resolution: 0.1%RH
Humidity Accuracy: 4.5%RH​

Sensor model: SHT10

​Sensor Length: 2m /6.56ft

Storage Temperature: -20~75℃             (no icy or condensation)

Data Storage: 10 years

Mounting Method: Flush-mounting and screw terminals

Environmental Conditions: 0~50℃         (no icy or condensation)

Humidity: 35-85% RH

Net Weight: about 600g

Gross Weight: 800g

Warranty: 12 months

For support, please visit support center or email us at sale@aposunmeter.com

1 x CHCRH400 Temperature & Humidity controller

​​​1 x Mounting bracket

​1 x Manual

1 x SHT10 Sensor
