CHR-2000

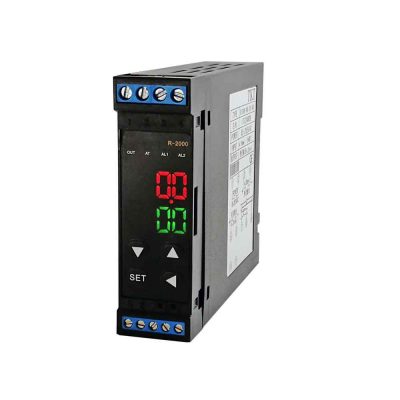

DIN Rail Temperature Transmitter Signal Converter

Single-channel DIN Rail PID Temperature Signal Converter

Widely used for ovens, incubators, brewing, warming/chilled cabinets, food processing, plastic manufacturing, and process applications requiring heat/cool control and process protection alarms in a compact DIN rail mounting package.

ORDER NOW

Overview

CHR-2000 Din rail mounted signal convertor accepts a low-level dc signal from millivolt, thermocouple or 2-3-4 wire resistance/RTD or transmitting potentiometer sensor, located in Hazardous Area, and converts, with isolation, the signal to drive a Safe Area load.

  • Mini type (22.5×75×94.5mm), rail mounting, with LED display
  • Wide range of input signals, sampling period 150 ms
  • The newest AT algorithm, in the thermal system will not fail calculus
  • Dehumidifier and slope function
  • PV, SV or MV transfer function optional
  • Modbus RTU communication or Master-slave communication
  • Used as temperature, pressure, flow, level, displacement detection transformation, controlled and event alarm.
  • Work with PLC, DCS or other systems

Main Features

  • Power supply: 85-265V AC or 24V DC  50/60Hz, consumption: about 4VA
  • Memory function:  power failure E²PROM
  • Sampling speed: 150ms
  • Temperature Units: Degree Celsius(℃), Fahrenheit(F)
  • Display accuracy: 0.5%F.S
  • Various inputs & outputs available
  • Output mode: PID, P, PI, PD, ON/OFF(P=0)
  • Insulation: between control loop ( control output, alarm, transmitter output) & input loop
  • Insultation resistance: Main loop~ crust(grounded) DC 500v>10MΩ; Control loop ~ crust(grounded) DC 500v>10MΩ
  • Voltage resistance: Main loop~ crust(grounded) 1500V per munite; Control loop ~ crust(grounded) 1000V per munite

Mini size, Easy operation

Easy to install & Fast to setup

Outstanding control performance & Comprehensive solution

Specification

22.5x75x94.5 mm

Thermocouple (K, J, R, S, B, E, N, T, W)

RTD (Cu50, Pt100)

Analog signals (-10-10mV, 0-10mV, 0-20mV,0-50mV, 10-50mV, 0-1V DC, 0-5V DC,0-10V DC, 1-5V DC, 2-10V DC, 4-20mA, 0-20mA, 0-10mA)

Relay: 5A 220V, electrical life: 100,000 times and more under rated load

SSR: SSR pulse, ON 24V, OFF 0V, max load current: 20mA

Linear current(mA): 4~20mA, 0~10mA, max load resistance: 900Ω

Linear voltage(V): 0~5V, 0~10V, 1~5V, 2~10V, max load current: 20mA

Current output: 4~20mA, 0~20mA, max load impedence: 900Ω

Voltage output: 0~5V, 0~10V, 1~5V, 2-10V, max load current: 20mA

Modbus RTU protocol

Rate: 9600, 19200

Control mode: PID, P, PI, PD, ON/OFF(P=0)

Range: P: 0-200%. I: 0-3600s, D: 0-900s

Mounting Method: DIN Rail

Environmental Conditions: -10~50℃         (no icy or condensation)

Humidity: 0-85% RH

Net Weight: about 150g

Gross Weight: 180g​

Warranty: 12 months

For support, please visit support center or email us at sale@aposunmeter.com

1 × CHR-2000 DIN Rail type temperature transmitter

1 × Mounting bracket

1 × Manual
