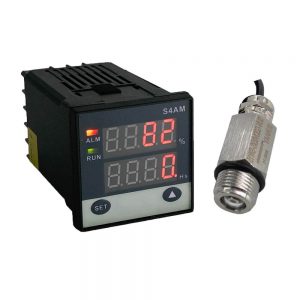

UV light intensity meter with dector CHS4AM


UV Light Intensity Meter With Detector (Ultra Violet system)

On-Line/Real-time Ultraviolet Monitor

Real-time online monitoring of ultraviolet relative intensity, irradiances (mW/ cm²), and accumulative time respectively.

Easy operation, simple identification, precision reading, and control.



CHS4AM UV C light intensity meter is an on-line ultra violet fail-safe monitor, especially for UV disinfection lamp, ultraviolet light accelerated aging test machine, water treatment, UV air purifier, air sanitizer, ultra-pure water system etc.

The best partner for UV devices on various occasions & applications:

  • UV curing and aging
  • Air sterilization
  • Sewage treatment, Water disinfection
  • Semiconductor fabrication
  • Offset printing
  • Environmental monitoring
  • Other industrial process control

Main Features

  • Advanced MCU for controlling, stable & reliable
  • Standard panel 1/16, 1/8 din: 48×48mm  48×96mm
  • LED display
  • Accumulated timing for UV lamp running-time
  • UV irradiance low alarm
  • Easy operation & installation
  • Used in curing, aging, air sterilization, sewage treatment, water treatment, ozone detection, arc monitoring, ultra-pure water system and other industries

UVC Intensity Measurement System

Best Partner for Air Water Purification

UV Lamp Hour Management

UV meter UV monitor


Model LED display Display parameters Alarm Dimension
Intensity relative value Intensity absolute value Running time For UV relative value For UV absolute value For running time Frame Holing
CHS4AM 4 digits LED × × 48×48×85cm 45×45cm
CHS4DM 4 digits LED × × × 48×48×85cm 45×45cm
CHS5AM 5 digits LCD × 48×94×110cm 45×92cm
CHS9AM 5 digits LED × 48×94×110cm 45×92cm

Power Supply:

85~265V AC    45~65HZ

Consumption: 3W

0~19999uW/ cm²


UV sensor monitors UVC(253.7nm)

intensity of the ultraviolet disinfection

Operating temperature: 0~50℃

Humidity: 35~85% RH

about 350g

Warranty: 12 months

For support, please visit support center or email us at sale@aposunmeter.com

1 x CHS4AM UV light intensity meter

1 x UVC intensity detector

1 x Manual
