Overview

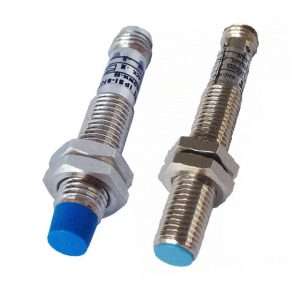

CHIPS inductive proximity sensor
- Response hysteresis: ≤ detecting distance×10%
- Response material: Iron, copper, steel, aluminum (detecting distance is different according to material )
- Response frequency: 100KHz (DC type), 10Hz (AC type)
- Load current: ≤200 mA (resistance)
- Ambient temperature: -25~70 ℃
- Cable: 2-meter (other customs)
Main Features
- Inductive and capacitive proximity sensor.
- Style:cylinder shape(M5,M8,M12,M18,M22,M30);various rectangular shapes and protruding shapes.
Shielded or unshielded type. - DC 2-wire(10-30V DC),DC 3-wire(10-30V DC),DC 4-wire(10-30V DC),AC 2-wire(90-250 AC/24~250V AC)type
Connection mode: wires, M8 connector, and M12 connector. - Brass nickel plated, proof of oil, water acid, alkaline.
- Standard sensing object: inductive sensor: ferrous metals; capacitive sensor: metal or non-metal objects.
- Protection rate: IP67, water-resistant.
- Over-load and short circuit protection; polarity reversal protection.
- Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc
Function mode:
-
CHIPS- NO (NPN Normally open)
-
CHIPS- NC (NPN Normally closed)
-
CHIPS- PO (PNP Normally open)
-
CHIPS- PC (PNP Normally closed)
Ordering code
| Model no | CHIPS | Inductive Proximity Sensor | ||||||
|---|---|---|---|---|---|---|---|---|
| Connector | N | NO Connector | ||||||
| I | Straight | |||||||
| L | 90° Angle | |||||||
| Appearance | 5 | M5 Cylinder | ||||||
| 8 | M8 Cylinder | |||||||
| 12 | M12 Cylinder | |||||||
| 18 | M18 Cylinder | |||||||
| 30 | M30 Cylinder | |||||||
| S | Rectangular | |||||||
| F | Protruding | |||||||
| Output Mode | NO | NPN NO | ||||||
| NC | NPN NC | |||||||
| PO | PNP NO | |||||||
| PC | PNP NC | |||||||
| NOC | NPN NO+NC | |||||||
| POC | PNP NO+NC | |||||||
| DO | DC 2-Wire NO | |||||||
| DC | DC 2-Wire NC | |||||||
| AO | AC 2-Wire NO | |||||||
| AC | AC 2-Wire NC | |||||||
| Detect Distance | 1 | 1mm | ||||||
| 2 | 2mm | |||||||
| 4 | 4mm | |||||||
| 5 | 5mm | |||||||
| 8 | 8mm | |||||||
| 10 | 10mm | |||||||
| 15 | 15mm | |||||||
| 20 | 20mm | |||||||
| 25 | 25mm | |||||||
| Output Current | A | 100ma | ||||||
| B | 200ma | |||||||
| C | 300ma | |||||||
| Short Body Sensor | N | NONE | ||||||
| S | Short Body Sensor |
Specifications
Period of Sampling: 100KHz (DC type), 10Hz (AC type)
Mounting Method: Flush-mounting
Environmental Conditions: -25~70℃ (no icy or condensation)
Net Weight: about 50g
Gross Weight: 60g
Warranty: 6 months
For support, please visit support center or email us at sale@aposunmeter.com
1 × CHIPS inductive proximity switch
Package type: 100×100×12 mm carton box
