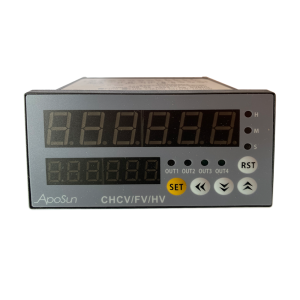

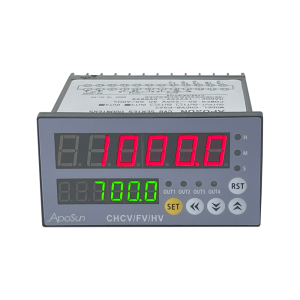

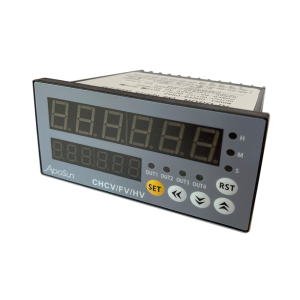

CHCV8-preset-scale-batch-digital-counter

CHCV8

6 Digits Preset scale batch Counter/Length Counter

CHCV8 preset counter is a multi-functional digital counter. Preset scale, preset batch number, analog output 0-10v/4-20ma optional, RS485 optional,10KHz response speed, preset initial count value, power-off memory, e.g.

ORDER NOW

Overview

CHCV8 is a preset scale counter, batch counter, pulse counter, length counter, and displacement sensor counter.

  • 6 digits display in 48*96 size (1/8 din)
  • Initial count value setting function, easy for position transducers control
  • 5 input modes / 8 output modes
  • 2 relay outputs max, with delay time setting
  • Up to 10Khz counting speed
  • Power failure protection. The date is saved for 10 years.
  • Panel button lock function
  • RS485 and analog output Optional

CHCV7(72*72mm)/CHCV4(48*48mm) are available

Main Features

  • 48 × 96 mm size
  • Dual display 6 digits 7 segments LED display
  • 1%F.S measuring accuracy
  • Power supply: 85~265V AC  50/60Hz, consumption: <5VA
  • Input voltage pulse: square wave, sine wave, low level(0V~1V); high level(3V~30V)
  • 2 Relay output,RS485 optional,0-10v/4-20m analog output optional
  • Contact capacity: NO+NC type, 250V AC / 3A, or 30V DC / 3A
  • Counting speed: 10/200/5K/10K pcs configurable
  • Insulation resistance: ≥100MΩ, 2KV/0.5mA 1M
  • Withstand pulse interference: Power: ±2KV  Input: ±400V
  • Withstand oscillation: 10-55Hz
  • A preset initial count value optional

Standard size, Easy operation

6 digits display, 48*96mm (1/8 din) size

Counting ratio setting, preset scale,Unit Metric, or Yard configurable,preset initial count value

CHCV8-preset-scale-batch-digital-counter

Specification

Function CHCV P S
Dimension 4 48W*48H mm
7 72W*72H mm
8 96W*48H mm
Blank Pulse counting display only
S Pulse count & Line-speed display
Preset Function P with preset setting function
Proportion Function S with proportion coefficient setting function
Digits Display 6 6 digits LED display
8 8 digits LED display
Loop Output 1 1 loop output(OUT4)
2 2 loop output(OUT4, OUT3)
3 3 loop output(OUT4, OUT3, OUT2)
Extent Function Blank  None
T With RS485 Modbus interface
I With analog output 4-20mA
V With analog output 0-10V

Power Supply: 85~265V AC   50/60Hz

Relay output, NO + NC type, 2 no.s max

Contact capacity: 250V AC /3A  or 30V DC /3A

Dimension Body: 48x48x84 mm    Cutout size: 46.5X46.5 mm

Dimension Body: 72x72x84 mm    Cutout size: 70X70mm

Dimension Body: 96x48x84 mm    Cutout size: 91.5X46.5 mm

Mounting Method: Flush-mounting and screw terminals

Passive contact, proximity sensor, travel switch, photo sensor, Rotary encoder, etc..

Voltage pulse range:                              low level(-30V~0.5V)                                 high level(4V~30V)

Display range: 0.0001 ~ 999999

Proportion coefficient setting: 0.0001 ~ 99.9999

Counting speed setting: 10/200/5K/10K pcs

initial count value range:0.0001 ~ 999999

delay time setting: 0.01 ~ 99.99s

Lock for parameter setting:

–Only the correct password enter, the user can modify the presetting values

Lock for panel button:

–One set to disable the front button function (except SET key)

Preset initial count value function: Any desired value can be set on the unit as the initial count value of the counter. The counter will add to or subtract from the set value.

For example, you set 10 as the initial count value, and after every reset, the display will show 10.  The default setting is 0.

Temperature: 0~50℃

Humidity: 35-85%RH

(no icy or condensation)

Net Weight: about 300g

Gross Weight: 350g

Warranty: 12 months

For support, please visit support center or email us at sale@aposunmeter.com

1 x CHCV Digital Counter/Length/Height/Position meter

​​​2 x Mounting bracket

​1 x Manual
