6 digital Dual Channel Batch Counter


LED display 6 digital Dual channel Counter / Length counter / Tacho /Linear speed meter

48x96mm batch counter and dual channel counter are selectable

Input Photoelectric / Proximity sensor / Contact / Encoder



CHCMF402 can use as?

1.Preset scale counter / Length counter

2. Tacho / Linear speed meter

3. Batch counter (batch set value; set values in batches)

4.Dual channel counter (A, B input signal):

  • Under mode E –input A is positive count, input B is minus count
  • Under mode F –both input A and B are positive counts

Main Features

  • LED digital preset counter / Dual channel counter / Length counter / Tacho meter
  • 48mm * 96mm size
  • Dual display, 6 digits 7 segments LED display
  • 1%F.S Measuring accuracy
  • Maximum 2 alarms
  • Power supply: 85~265V AC Aux power: 12V DC
  • Input voltage pulse: low level(-30V~0.5V); high level(4V~30V)
  • Ambient Temp: 0~40℃
  • Measuring frequency: 1~3Khz
  • Contact capacity: 5A for NO contact, 3A for NC contact at 220V AC
  • Up to 7 functions selectable (different functions with different setting range)

All in one creative product

CHCMF402 is a multi-functional pulse controller

7 in 1, one product offers you 7 flexible solutions!

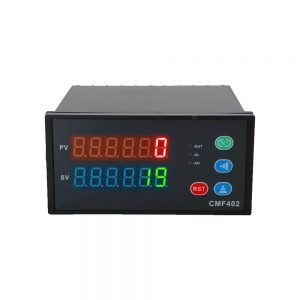

LED display 6 digital Counter Length counter Tacho Linear speed meter with plastic covering backside


Power Supply Voltage:

85~265V AC    50/60HZ

Aux. Power Voltage:

N-no aux power                                        D-12V DC grounded                                C-12V DC isolated

Body: 48x96x90 mm

Front Panel: 48 mm(W)X96 mm(H)

Cutout size: 45×92 mm

Mounting Method: Flush-mounting and screw terminals

Voltage pulse range:                              low level(-30V~0.5V)                                 high level(4V~30V)

N- None

R- Relay

F- others

Batch counter / Batch meter:

  • Batch output value set “0~999999” (when number rise to batch set value, batches value +1)
  • Batches output value set in “0~999999” (when batches number rise to set value then relay action)

Shift counter / Shift meter (A,B input signal):

  • Mode E means input A is positive count, input B is minus count
  • Mode F means both input A and B are positive count

Up to 3 count mode functions selectable

Counter (count up / count down)

Counter input (contact signal, photoelectric, proximity sensor, encoder)

Counter with multiply displayed

6-digit up / down counter

4 available logic relay action


2.Line-speed meter

  • 2 available logic relay action
  • Analog output: 0-20ma, 4-20ma
  • Input 1~5Khz

Storage Temperature: -20~60℃             (no icy or condensation)

Data Storage: 10 years

Mounting Method: Flush-mounting and screw terminals

Environmental Conditions: -20~60℃         (no icy or condensation)

Humidity: 35-85% RH

Net Weight: about 300g

Gross Weight: 400g​

Warranty: 12 months

For support, please visit support center or email us at sale@aposunmeter.com

1x CHCMF402 Counter/Length counter/Tacho/Line-speed meter

​​​1x Mounting bracket

​1x Manual
