CHCV4
6 Digital Programmable Counter/Length Counter
Multi-functional programmable counter in a compact design. Including 1/16 din small size, programmable pulse factor, Up to 10KHz response time, Count start value setting, power down memory, as well as numerous programmable operating modes, e.g. Length counter, position counter, event counter, height counter, level counter, or sum counter.
Overview
CHCV4 is a pulse counter, length meter, position controller or stopwatch.
- 6 digits display in 48*48 size (1/16 din)
- Count Start Point (counting initial value) setting function, easy for position control
- 5 input modes / 8 output modes
- 2 relay outputs max, with delay time setting
- Up to 10Khz counting speed
- Power failure protection. The date saved for 10 years.
- Panel button lock function
- RS485 or analog output Optional
CHCV7(72*72mm)/CHCV8(96*48mm) are available
Main Features
- 48 × 48mm size
- Dual display 6 digits 7 segments LED display
- 1%F.S measuring accuracy
- Power supply: 85~265V AC 50/60Hz, consumption: <5VA
- Input voltage pulse: square wave, sine wave, low level(0V~1V); high level(3V~30V)
- Contact capacity: NO+NC type, 250V AC / 3A, or 30V DC / 3A
- Counting speed: 10/200/5K/10K pcs configurable
- Insulation resistance: ≥100MΩ, 2KV/0.5mA 1M
- Withstand pulse interfere: Power: ±2KV Input: ±400V
- Withstand oscillation: 10-55Hz
Compact size, Simple operation
6 digits display, 48*48mm (1/16 din) size
Counting ratio setting, Unit Metric or Yard configurable
Specification
| Function | CHCV | — | P | S | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Dimension | 4 | 48W*48H mm | ||||||||
| 7 | 72W*72H mm | |||||||||
| 8 | 96W*48H mm | |||||||||
| Blank | Pulse counting display only | |||||||||
| S | Pulse count & Line-speed display | |||||||||
| Preset Function | P | with preset setting function | ||||||||
| Proportion Function | S | with proportion coefficient setting function | ||||||||
| Digits Display | 6 | 6 digits LED display | ||||||||
| 8 | 8 digits LED display | |||||||||
| Loop Output | 1 | 1 loop output(OUT4) | ||||||||
| 2 | 2 loop output(OUT4, OUT3) | |||||||||
| 3 | 3 loop output(OUT4, OUT3, OUT2) | |||||||||
| Extent Function | Blank | None | ||||||||
| T | With RS485 Modbus interface | |||||||||
| I | With analog output 4-20mA | |||||||||
| V | With analog output 0-10V |
Power Supply: 85~265V AC 50/60Hz
Relay output, NO + NC type, 2 no.s max
Contact capacity: 250V AC /3A or 30V DC /3A
Dimension Body: 48x48x84 mm Cutout size: 46.5X46.5 mm
Dimension Body: 72x72x84 mm Cutout size: 70X70mm
Dimension Body: 96x48x84 mm Cutout size: 91.5X46.5 mm
Mounting Method: Flush-mounting and screw terminals
Passive contact, proximity sensor, travel switch, photo sensor, Rotary encoder, etc..
Voltage pulse range: low level(-30V~0.5V) high level(4V~30V)
Display range: 0.0001 ~ 999999
Proportion coefficient setting: 0.0001 ~ 99.9999
Counting speed setting: 10/200/5K/10K pcs
delay time setting: 0.01 ~ 99.99s
Lock for parameter setting:
–Only the correct password enter, the user can modify the presetting values
Lock for panel button:
–One set to disable the front button function (except SET key)
Free Write function: Any desired value can be set on the unit as the starting count value of the counter. The counter will add to or subtract from the set value.
Upon every reset, the set value will be displayed. The default setting is 0.
Temperature: 0~50℃
Humidity: 35-85%RH
(no icy or condensation)
Net Weight: about 200g
Gross Weight: 250g
Warranty: 12 months
For support, please visit support center or email us at sale@aposunmeter.com

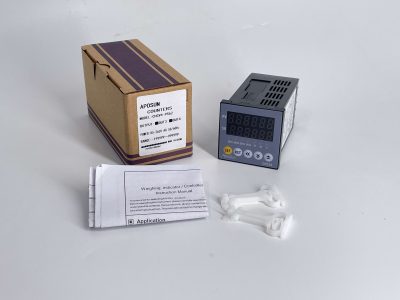

1 x CHCV Digital Counter/Length/Height/Position meter
2 x Mounting bracket
1 x Manual
