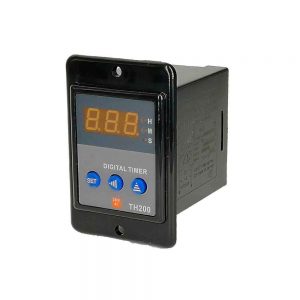

CHTH200

LED display Digital Timer

Timing Relay/Time Delay Relay/220V on-delay Timer Relay, 0.01~999S/M/H

ORDER NOW

Overview

Is CHTH200 a … Timer?

YES! Single delay timer.

  • 8-bit chip microcomputer integrated circuit
  • Two sets of relay output (instantaneous delay or double delay)
  • 7 time base free to switch
  • Power failure protection
  • Time delay ranges from 0.01 seconds to 999 hours

Main Features

  • LED digital Timer, range: 0.01 ~ 999s/m/h
  • 58×88 mm size
  • 3 digits 7 segments LED display
  • 3%F.S measuring accuracy
  • Installation: panel type/din rail type
  • Power supply: 220V AC, other power supply can be customized
  • Environment temperature: -10~60℃, humidity: 0~85%RH
  • Contact capacity: 220V 3A AC 28V 5A DC resistance load

Qualified product and easy to use!

CHTH200 is a time switch

7 time unit: 0.01S, 0.1S, S, 0.1M, 1M,  0.1H, 1H;

Count UP or DOWN mode available

Specification

Power Supply:

220V AC    50/60HZ

N- None

R- Relay

Body: 58x88x68 mm

Front panel size: DIN 58(W)x88(L) mm

Cutout size: 51×63 mm

Mounting Method: Flush-mounting and screw terminals / Din rail type

Single loop delay timer(count up / count down)

Time delay ranges from 0.01 seconds to 999 hours

Two sets of relay output (instantaneous delay or double delay)

Storage Temperature: -20~60℃             (no icy or condensation)

Data Storage: 10 years

Mounting Method: Flush-mounting and screw terminals / Din rail mounted

Environmental Conditions: -20~60℃         (no icy or condensation)

Humidity: 35-85% RH

Net Weight: about 180g

Gross Weight: 270g​

Warranty: 12 months

For support, please visit support center or email us at sale@aposunmeter.com

1 x CHTH200 Timer

​​​1 x Mounting bracket

​1 x Manual

1 x 8-pin Connection base(optional)
