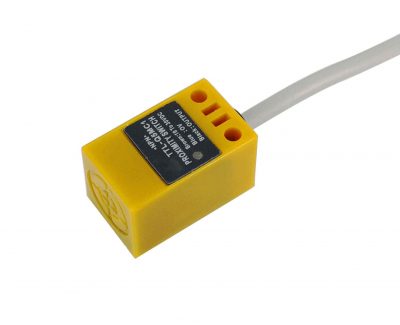

Square Rectangular Inductive Proximity Sensor Switch NPN/PNP 10~30VDC Waterproof/Metal Detector Sensor

Widely applied in measuring, Counting, Rpm measuring in the mechanism, chemical, paper manufacture light industry, etc. Reliable quality to replace famous brands.

ORDER NOW

Overview

X5MC1 inductive proximity sensor

  • Response hysteresis: ≤ detecting distance×10%
  • Response material: Iron, copper, steel, aluminum (detecting distance is different according to material )
  • Response frequency: 100KHz (DC type), 10Hz (AC type)
  • Load current: ≤200 mA (resistance)
  • Ambient temperature: -25~70 ℃
  • Cable: 2-meter (other customs)

Main Features

  • Working power: 10~30V DC
  • Test object: metal objects (copper, iron, stainless steel, etc.)
  • Detection moment away: 3~5 mm (related to metal material)
  • Dimensions: 17×17.2×28 mm
  • Lead mode: Φ4 mm three-core cable × 2M (standard line length 2 meters)
  • Output mode: NPN/PNP NO/NC(200mA)

Square Proximity Sensor Modes:

  • Q5MC1    NPN NO (Normally open)

  • Q5MC2    NPN NC (Normally closed)

  • Q5MB1    PNP NO (Normally open)

  • Q5MB2    PNP NC (Normally closed)

Square Rectangular Inductive Proximity Sensor Switch NPNPNP 10~30VDC WaterproofMetal Detector Sensor dimensions

Ordering code

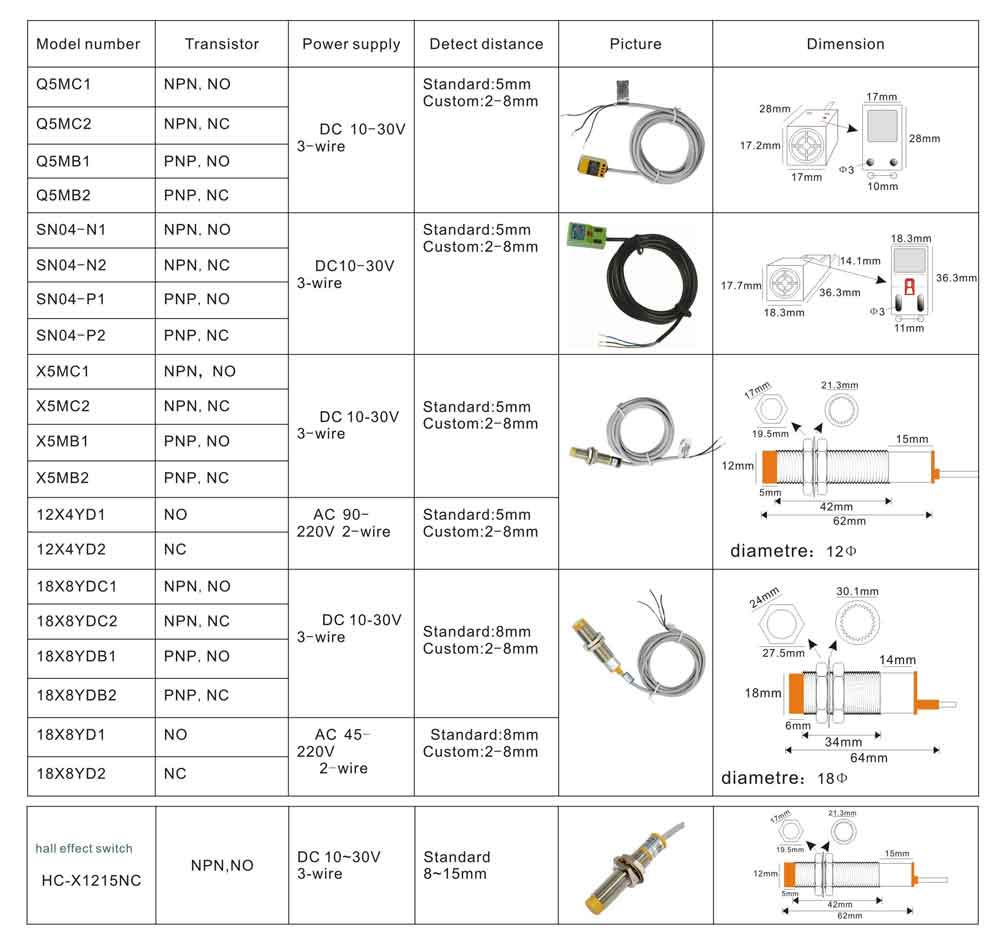

Inductive sensor switches mode selection

Specifications

Period of Sampling: 100K Hz

Mounting Method: Flush-mounting

Environmental Conditions: -25~70℃ (no icy or condensation)

Net Weight: about 50g

Gross Weight: 60g​

Warranty: 6 months

For support, please visit support center or email us at sale@aposunmeter.com

1 × Q5MC1 inductive proximity switch

Package type: 100×100×20 mm plastic bag
