SW14
Slim UV Probe for Open Channel UV Disinfection | Compact Side-Entry Design
► Model: SW14 ► Range: customize uW/cm2 ► Resolution: 10uW/cm2 ► Working voltage: customize VDC ► Current output: (customize) ► Cable length: 5 meters ► Waterproof: 10 kg ► Weight: 500g ► Thread : customize ► Please refer to the brochure for details * Measuring range can be customized.
Overview

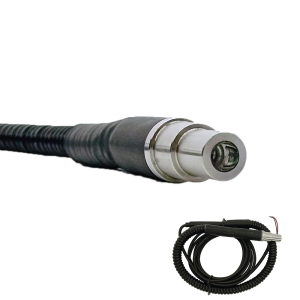

SW14 Slim UV Probe for Open Channel UV Disinfection | Compact Side-Entry Design
- Measure ultraviolet (UV) light relative/absolute UV intensity
- The High accuracy, 316L stainless waterproof UV sensor that is ideal for Municipal Wastewater and Open Channel UV Disinfection
- Analog output (customize)
- An easy-to-use, superior long-time stability and corrosion resistance.
- For low-pressure UV lights
Main Features
- The SW14 Slim UV Probe features a compact side-entry design for open channel UV disinfection.
It is water-pressure resistant up to 10 bar and is typically used to monitor low-pressure UV lamps in pressurized water.
The sensor can be configured according to individual requirements, including signal output type, measurement range, and spectral responsivity.
Available signal outputs include 0–5 V voltage, 4–20 mA current loop, or photodiode output.
General Specification
| Parameter | Value |
| Response Spectrum | 210~280nm(UVC) |
| Peak Response Spectrum | 253.7num |
| Output Signal | (Customize) |
| Power Supply | (Customize VDC) |
| Load impedance | Customize |
| Mode of Connection | Customize |
| Measuring Range | Customize uw/cm² |
| Power Consumption | <0.5w |
| Operating Temperature | -10~60 ℃ |
| Storage Temperature | -10~70 ℃ |
| Shell Material | SUS316L |
| Screw Specification | Customize |
| Cable Model | 5M long |
Other details
Connect Type: Wiring or other Connectors aviation plug available
Environmental Conditions: -10～70℃ (no ice or condensation)
Net Weight: 500g
Gross Weight: 520g ~630g
Warranty: 12 months
For support, please visit support center or email us at sale@aposunmeter.com
1 × SW14 Side-Entry UV Sensor
Package type: plastic bag with box
