X5MC1

Metal Detect Inductive Proximity Switch Sensor NPN/PNP 10~30VDC

Widely applied in measuring, Counting, RPM measuring in the mechanism, chemical, paper manufacture light industry, etc. Reliable quality to replace famous brands.

ORDER NOW

Overview

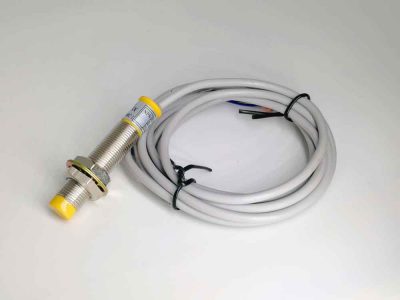

X5MC1 inductive proximity sensor

  • Response hysteresis: ≤ detecting distance×10%
  • Response material: Iron, copper, steel, aluminum (detecting distance is different according to material )
  • Response frequency: 100KHz (DC type), 10Hz (AC type)
  • Load current: ≤200 mA (resistance)
  • Ambient temperature: -25~70 ℃
  • Cable: 2-meter (other customs)

Main Features

  • Working power: 10~30V DC
  • Test object: metal objects (copper, iron, stainless steel, etc.)
  • Detection moment away: 3~5 mm (related to metal material)
  • Dimensions: M12×62MM
  • Lead mode: Φ4 mm three-core cable × 2M (standard line length 2 meters)
  • Output mode: NPN/PNP NO/NC(200mA)

Function mode:

  • X5MC1    NPN NO (Normally open)
  • X5MC2    NPN NC (Normally closed)
  • X5MB1    PNP NO (Normally open)
  • X5MB2    PNP NC (Normally closed)

Ordering code

Other details

Period of Sampling: 100K Hz

Mounting Method: Flush-mounting

Environmental Conditions: -25~70℃ (no icy or condensation)

Net Weight: about 50g

Gross Weight: 60g

Warranty: 6 months

For support, please visit support center or email us at sale@aposunmeter.com

1 × X5MC1 inductive proximity switch

Package type: 100×100×12 mm plastic bag
